WI #108
WASHING MACHINES WI
0%
Description
This is a part that Steve is having to replace. He thinks he can find something at the Budget Inn, but there’s a good chance we might have to order this for the Main laundry room
It’s all from the same manufacturer as wash one. Alliance laundry. It’s a solenoid-type valve. The same orange kind that we get on Amazon for the Washer but obviously a different part number is needed because it’s a bigger model. And I think they’re called auto fill walls.
Files
.jpeg){kind=link}
History
Updated by Sieu Ngo about 1 month ago
Washing Machine at WI:
Speed Queen 50lb Washer-Extractor
Model: SC50MN2AU10001
Serial 0196076706
This part number is already discontinued. Sieu reached out to alliance to ask assistance since ai is not giving us the correct part numbers and they replied "parts@alliancelaundry.com". They respon quikcly via email. They said this valve has been discontinued by Alliance Laundry Systems. So we have Two options.
1. The factory replacement kit F798709 Elbi Conversion Kit;
https://parts.alliancelaundry.com/i-2068827-speed-queen-f798709-washer-kit-elbi-conv-110v-c27-50.html
or Generic part GP-F730455
https://parts.alliancelaundry.com/i-19085517-generic-f730455-kit-valve-3-way-mixing-uc-120v.html
Also Generic part GP-F730455-Body
Also available on ebay and kings laundry. If we order it directly to alliance, their shipping costs to much. so as much as possible if we will order 1 item only we need to source out and find cheaper sf. Order 1 on kings laundry for $31.95 + $8.95 sf.
The on that Steve sent is 110v, and we ordered 120v, but it works from 108 all the way to 122.
Then your next range is from 208 to 240.
Then your next range is 255 to 277
But you cannot cross these ranges.

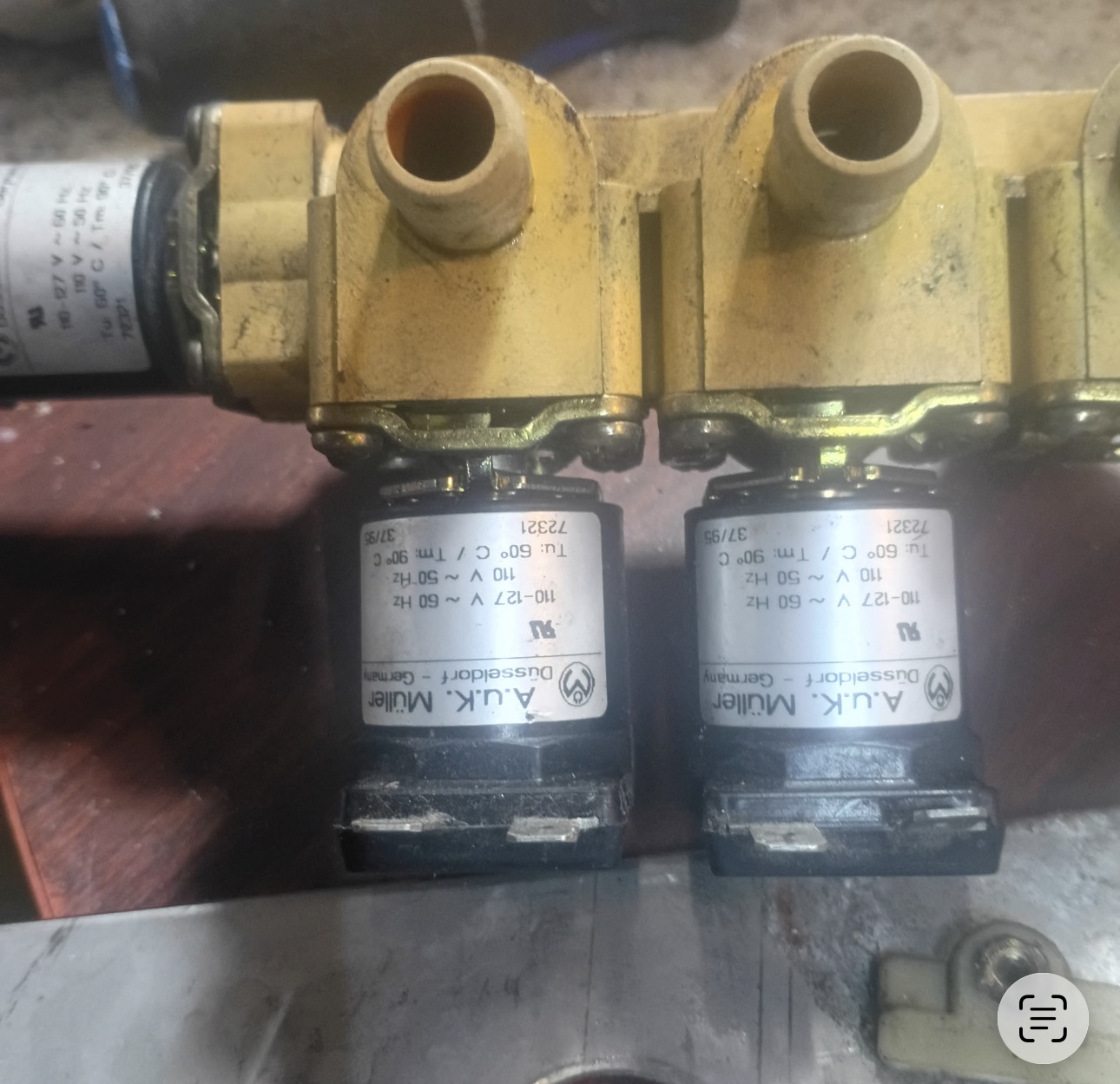

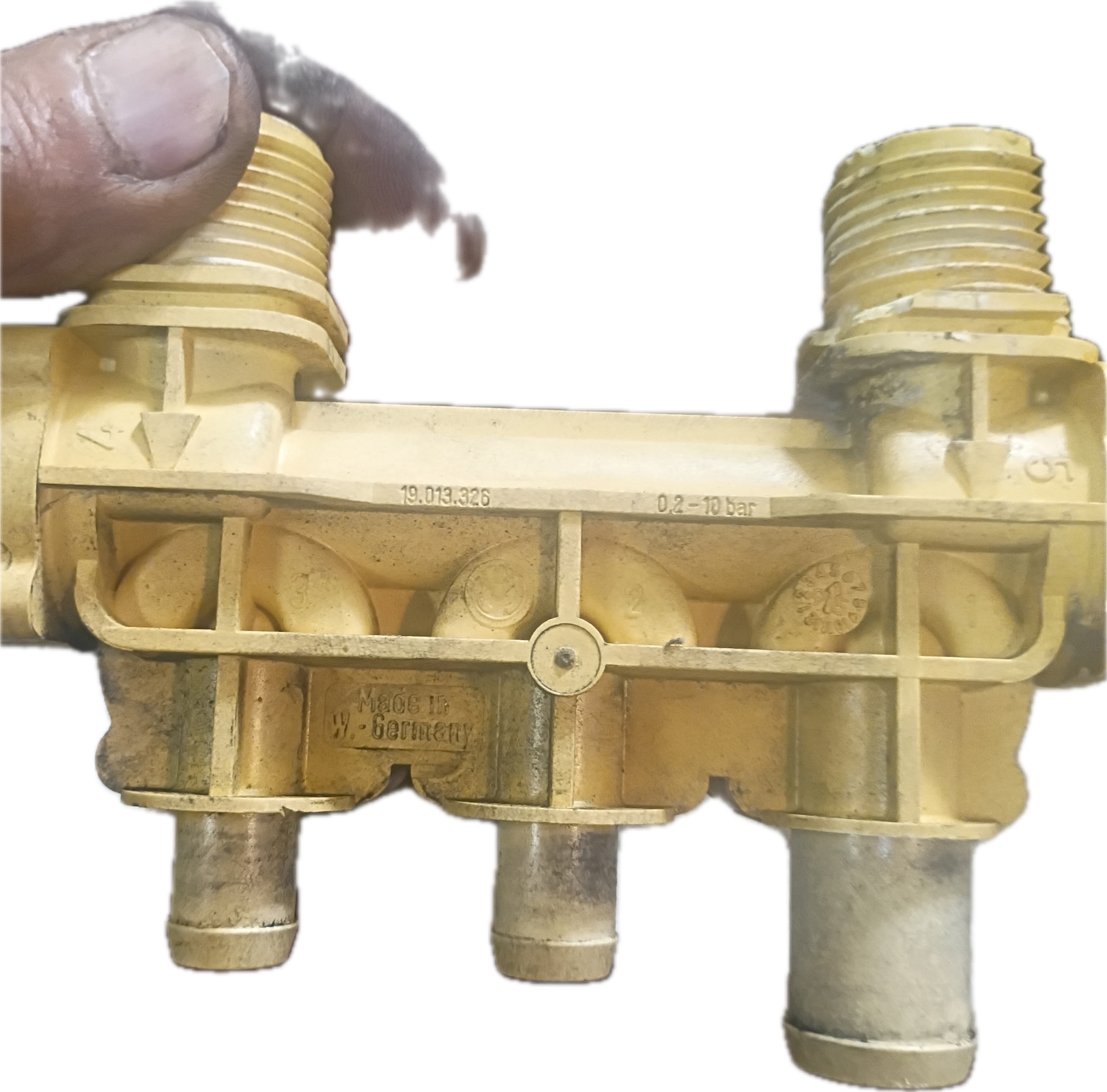

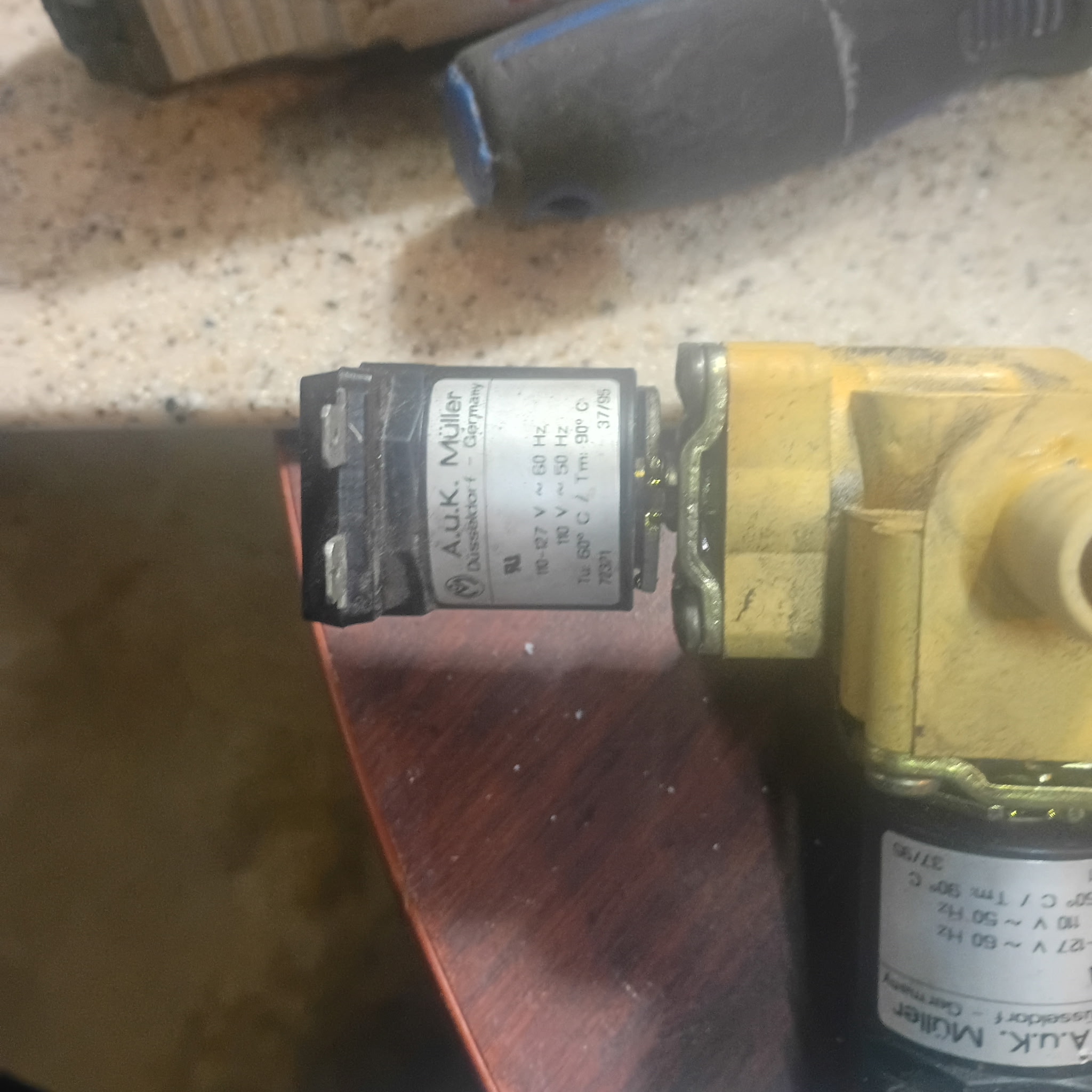

So yeah, this guy gave us great information. All three options will work. But based on the pictures from Steve, you can tell it’s just a body that’s cracked. Everything else is functional.
